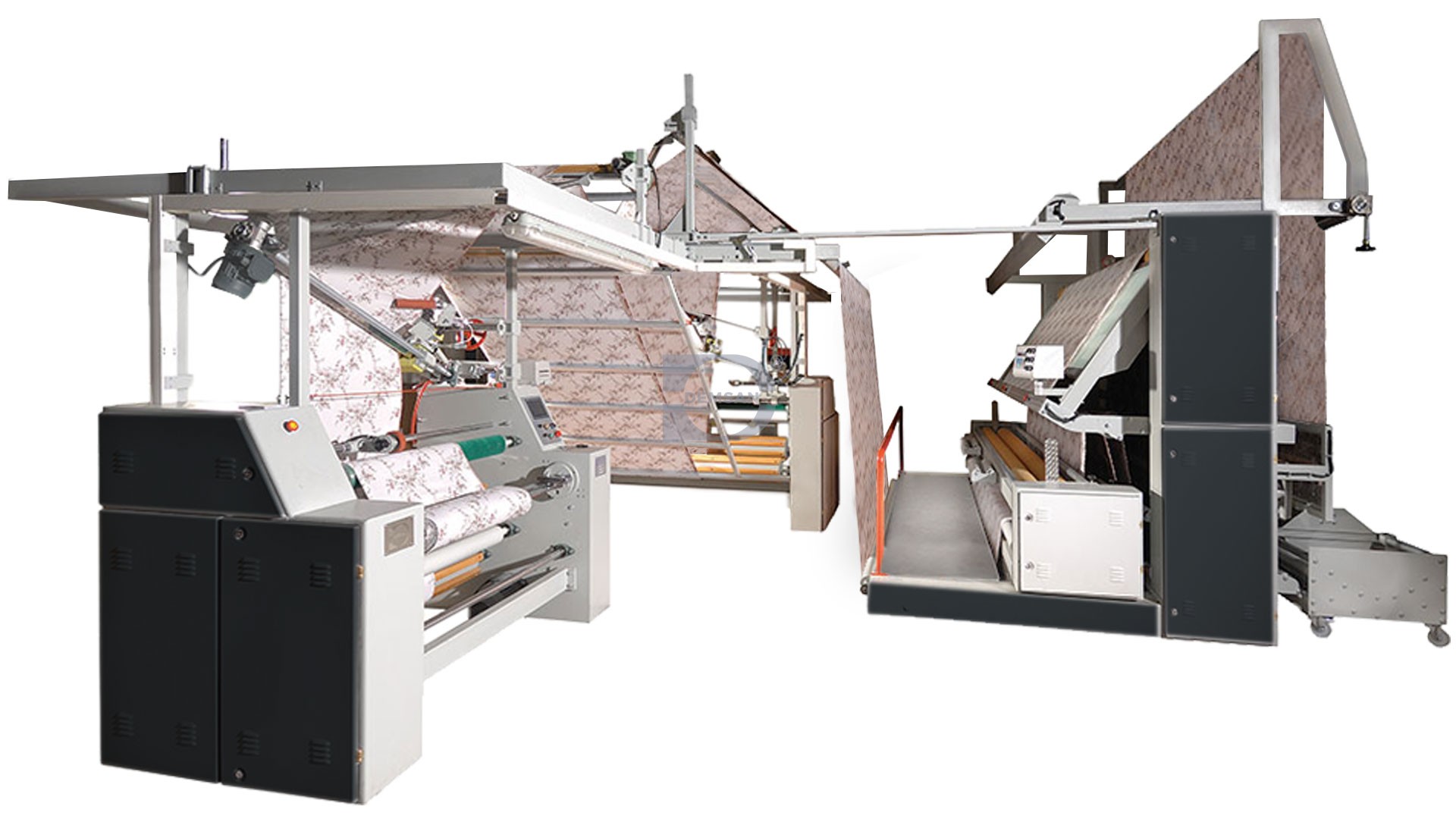

T24/C-15 DOUBLE – FOUR FOLD FABRIC ROLLING AND INSPECTION MACHINE

The machine rounds off technical textiles, knitted and woven fabrics in roll and book form by folding it into 1,2,3,4 and combinations. The machine folds wide width fabrics and gets the fabric rolls in optimum dimensions.

The illuminated wide control screen allows the detection and correction of defects on the fabric before the folding process.

The inspected fabric can be folded and rolled into a roll, or it can be rolled up as open width on two rollers.

The tension system is adjusted electronically according to the technical characteristics of the fabrics and thus the meter of tensionless fabric is measured properly.

Machine setting time in case of different fabric type and width is minimized through the patented movable triangle group and the maximum efficiency is obtained from the machine.

The new system fabric catcher group provides edge alignment without adjustment and without damage for all kind of fabrics.

The variable width fabrics are rolled in the optimum time by dynamic winding unit.

The fabric tension is adjusted automatically by selecting the fabrics memorized to the PLC system from the user-friendly touch screen.

 OPTIONAL SYSTEMS

There are many groups for various forms of fabric such as centered roll winding groups that can be used with or without cardboard tube, roll winding groups on two cylinders, book form winding groups.

Motorized roll lifting system, modular roll box, end to end sewing machine and J-Box system providing non-stop operation are applicable for roll fabric inlets.

The suitable unloading systems and tension systems are selected precisely for batch fabric inlets and thus the fabric is moved in the machine without stretching or deforming.

There are many alternate groups such as fabric cutting system, weighing system, barcode label printer system after the folding process.
