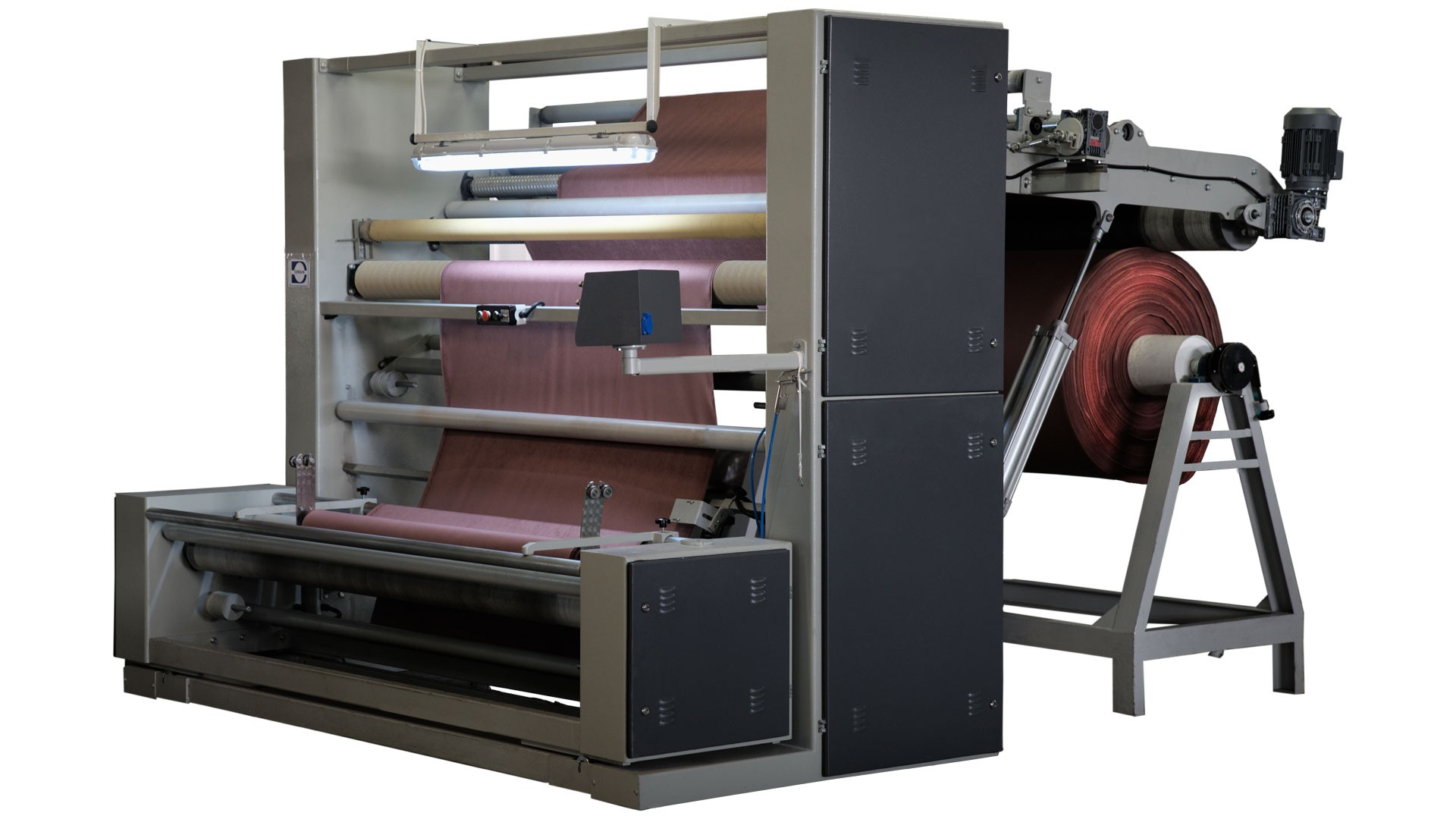

D/D-22 WOVEN FABRIC BATCHING MACHINE

The machine winds the raw fabrics on A-Frame to prepare dyeing and printing process.

The tension system is adjusted according to the technical characteristics of the fabrics and thus the meter of tensionless fabric is measured properly.

Changer group that provides fabric movement to prevent edge camber that may occur during winding.

Machine speed, winding hardness, inside-outside winding mode and all the parameters are commuted on the user-friendly operator panel.

The machine stops automatically at the end of the fabric and adjusted meter

Elastic fabrics are rolled tensionless with the motorized driven roll unloading system at the entrance of the machine.

 OPTIONAL SYSTEMS

Motorized roll lifting system, modular roll box, end to end sewing machine and J-Box system providing non-stop operation are applicable for roll fabric inlets.

There are many alternate groups such as optimization software that enables fabric defect mapping, barcode label printing system.

Tensionless fabric entrance into the machine is ensured the batched fabrics are driven from the center with a servo motor unwinding system or a piston pressured cylinder.
